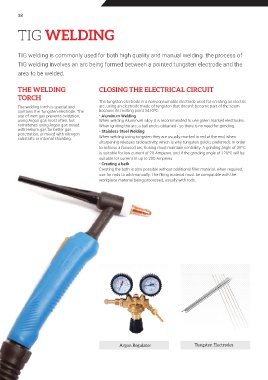

Page 38 - Product Catalog By Zika Welding

38

TIG WELDING

TIG welding is commonly used for both high quality and manual welding. the process of

TIG welding involves an arc being formed between a pointed tungsten electrode and the
area to be welded.

THE WELDING CLOSING THE ELECTRICAL CIRCUIT
TORCH
The tungsten electrode is a non-consumable electrode used for creating an electric
The welding torch is special and arc, using an electrode made of tungsten that doesn’t become part of the seam
O
contains the Tungsten electrode. The because its melting point 3410 C.
use of inert gas prevents oxidation, • Aluminum Welding
using Argon gas most often, but When welding Aluminum alloy it is recommended to use green marked electrodes.
sometimes using Argon gas mixed When igniting the arc, a ball end is obtained - so there is no need for grinding.
with Helium gas for better gas • Stainless Steel Welding
penetration, or mixed with nitrogen
substrate or internal shielding. When welding using tungsten they are usually marked in red at the end, when
sharpening releases radioactivity, which is why tungsten gold is preferred). In order
to achieve a focused arc, honing must maintain centrality. A grinding angle of 30 C.
O
is suitable for low current of 20 Amperes, and if the grinding angle of 120 C will be
O
suitable for current of up to 200 Amperes
• Creating a bath
Creating the bath is also possible without additional filler material, when required,
use for rods to add manually. The filling material must be compatible with the
workpiece material being processed, usually with rods.

Argon Regulator Tungsten Electrodes
