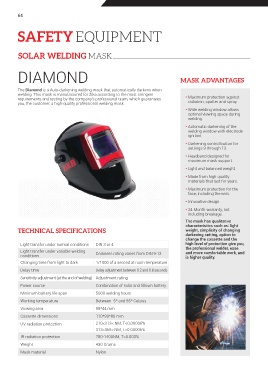

Page 64 - Product Catalog By Zika Welding

64

SAFETY EQUIPMENT

SOLAR WELDING MASK

DIAMOND MASK ADVANTAGES

The Diamond is a Auto-darkening welding mask that automatically darkens when
welding. This mask is manufactured for Zika according to the most stringent
requirements and testing by the company’s professional team, which guarantees • Maximum protection against
you, the customer, a high-quality professional welding mask. radiation, spatter and spray.
• Wide welding window allows
optimal viewing space during
welding.
• Automatic darkening of the
welding window with electrode
ignition.
• Darkening control button for
settings 9 through 13.
• Headband designed for
maximum mask support.
• Light and balanced weight.
• Made from high-quality
materials that last for years.

• Maximum protection for the
face, including the ears.
• Innovative design.
• 24-Month warranty, not
including breakage.
The mask has qualitative
characteristics such as: light
TECHNICAL SPECIFICATIONS weight, simplicity of changing
darkening setting, option to
change the cassette and the
Light transfer under normal conditions DIN 3 or 4 high level of protection give you,
Light transfer under variable welding Darkness rating varies from DIN 9-13 the professional welder, ease
and more comfortable work, and
conditions is higher quality.
Changing time from light to dark 1/1000 of a second at room temperature
Delay time Delay adjustment between 0.2 and 0.8 seconds
Sensitivity adjustment (at the end of welding) Adjustment rating
Power source Combination of solar and lithium battery
Minimum battery life span 5000 welding hours
Working temperature Between -5º and 55º Celsius

Viewing area 98*44 mm
Cassette dimensions 110*90*80 mm
UV radiation protection 210<313<NM, T<0.00006%
313<365< NM, T<0.00006%
IR radiation protection 780-1400NM, T<0.003%
Weight 430 Grams

Mask material Nylon
