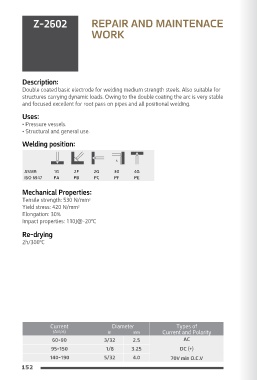

Z-2602 REPAIR AND MAINTENACE LOW ALLOY STEEL Z- 2603
WORK WELDING

Description: Description:
Double coated basic electrode for welding medium strength steels. Also suitable for Basic low-hydrogen electrode especially designed for general maintenance; welding
structures carrying dynamic loads. Owing to the double coating the arc is very stable cast steel and low-alloy steel. The welding material has medium to high tensile
and focused excellent for root pass on pipes and all positional welding. strength as well as very high impact strength at -46°C. Easy ignition and smooth
quiet arc with good penetration.
Uses:
• Pressure vessels. Uses:
• Structural and general use. • Repairs of agricultural equipment.
• Steel castings.
Welding position: • Excavation equipment.
• Ground drills.
• Hardox steels and Creusabro wear resistance steels.
ASME: 1G 2F 2G 3G 4G Welding position:
ISO 6947 PA PB PC PF PE
Mechanical Properties:
Tensile strength: 530 N/mm² ASME: 1G 2F 2G 3G 4G
Yield stress: 420 N/mm² ISO 6947 PA PB PC PF PE
Elongation: 30% Mechanical Properties:
Impact properties: 110J@-20ºC
Tensile strength: 600 N/mm²
Re-drying Yield stress: 530 N/mm²
2h/300ºC Elongation: 25%
Impact properties: 105J@-46ºC
Re-drying
2h/300ºC

Current Diameter Types of
)Amps( in mm Current and Polarity
70-95 3/32 2.5
Current Diameter Types of AC
)Amps( in mm Current and Polarity 90-140 1/8 3.25 DC )+(
60-90 3/32 2.5 AC 135-185 5/32 4.0
95-150 1/8 3.25 DC )+( 175-255 3/16 5.0 70V min O.C.V
140-190 5/32 4.0 70V min O.C.V 250-330 1/4 6.0
