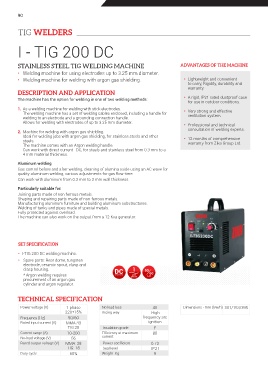

Page 90 - Product Catalog By Zika Welding

90

TIG WELDERS

I - TIG 200 DC

STAINLESS STEEL TIG WELDING MACHINE ADVANTAGES OF THE MACHINE
• Welding machine for using electrodes up to 3.25 mm diameter.
• Welding machine for welding with argon gas shielding. • Lightweight and convenient
to carry, Rigidity, durability and
warranty.
DESCRIPTION AND APPLICATION
The machine has the option for welding in one of two welding methods: • A rigid, IP21 rated dustproof case
for use in outdoor conditions.
1. As a welding machine for welding with stick electrodes. • Very strong and effective
The welding machine has a set of welding cables enclosed, including a handle for ventilation system.
welding to an electrode and a grounding connection handle.
Allows for welding with electrodes of up to 3.25 mm diameter.
• Professional and technical
2. Machine for welding with argon gas shielding. consultation of welding experts.
Ideal for welding jobs with argon gas shielding, for stainless steels and other • 12 months of comprehensive
steels.
The machine comes with an Argon welding handle. warranty from Zika Group Ltd.
Can work with direct current - DC, for steels and stainless steel from 0.3 mm to a
4 mm material thickness.

Aluminum welding
Gas control before and after welding, cleaning of alumina oxide using an AC wave for
quality aluminum welding, various adjustments for gas flow time.
Can work with aluminum from 0.3 mm to 3 mm wall thickness.

Particularly suitable for:
Joining parts made of non-ferrous metals.
Shaping and repairing parts made of non-ferrous metals.
Manufacturing aluminum furniture and building aluminum substructures.
Welding of tanks and pipes made of special metals.
Fully protected against overload.
The machine can also work on the output from a 12 Kva generator.

SET SPECIFICATION
• I-TIG 200 DC welding machine.
• Spare parts: Rear dome, tungsten
electrode, ceramic spout, clasp and
clasp housing. DC 1 50
* Argon welding requires phase Hz 60
one
procurement of an argon gas
cylinder and argon regulator.

TECHNICAL SPECIFICATION
Power voltage (V) 1 phase No load loss 40 Dimensions - mm (l/w/h) 301/153/395
220±15% Arcing way High
Frequency (Hz) 50/60 frequency arc
Rated input current (A) MMA:43 ignition
TIG:28 Insulation grade F
Current range (A) 10-200 Efficiency at maximum 80
No-load voltage (V) 56 current
Rated output voltage (V) MMA: 28 Power coefficient 0.73
TIG: 18 Seal level IP21
Duty cycle 60% Weight Kg 9
