91

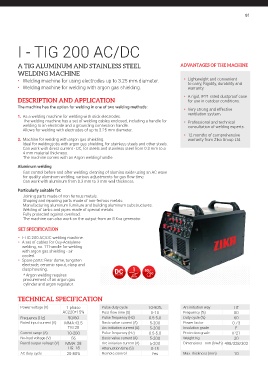

I - TIG 200 AC/DC

A TIG ALUMINUM AND STAINLESS STEEL ADVANTAGES OF THE MACHINE
WELDING MACHINE
• Welding machine for using electrodes up to 3.25 mm diameter. • Lightweight and convenient
to carry, Rigidity, durability and
• Welding machine for welding with argon gas shielding. warranty.

• A rigid, IP21 rated dustproof case
DESCRIPTION AND APPLICATION for use in outdoor conditions.
The machine has the option for welding in one of two welding methods:
• Very strong and effective
ventilation system.
1. As a welding machine for welding with stick electrodes.
The welding machine has a set of welding cables enclosed, including a handle for • Professional and technical
welding to an electrode and a grounding connection handle. consultation of welding experts.
Allows for welding with electrodes of up to 3.25 mm diameter.
• 12 months of comprehensive
2. Machine for welding with argon gas shielding. warranty from Zika Group Ltd.
Ideal for welding jobs with argon gas shielding, for stainless steels and other steels.
Can work with direct current - DC, for steels and stainless steel from 0.3 mm to a
4 mm material thickness.
The machine comes with an Argon welding handle.

Aluminum welding
Gas control before and after welding, cleaning of alumina oxide using an AC wave
for quality aluminum welding, various adjustments for gas flow time.
Can work with aluminum from 0.3 mm to 3 mm wall thickness.

Particularly suitable for:
Joining parts made of non-ferrous metals.
Shaping and repairing parts made of non-ferrous metals.
Manufacturing aluminum furniture and building aluminum substructures.
Welding of tanks and pipes made of special metals.
Fully protected against overload.
The machine can also work on the output from an 8 Kva generator.

SET SPECIFICATION
• I-TIG 200 AC/DC welding machine.
• A set of cables for Oxy-Acetylene
welding, no. 17 handle for welding
with argon gas shielding - air
cooled.
• Spare parts: Rear dome, tungsten
electrode, ceramic spout, clasp and
clasp housing. DC 1 50
* Argon welding requires phase Hz 60
one
procurement of an argon gas
cylinder and argon regulator.

TECHNICAL SPECIFICATION
Power voltage (V) 1 phase Pulse duty cycle 10-90% Arc initiation way HF
AC220±15% Post-flow time (S) 0-10 Frequency (%) 80
Frequency (Hz) 50/60 Pulse frequency (Hz) 0.5-5.0 Duty cycle (%) 60
Rated input current (A) MMA:43.5 Basic value current (A) 5-200 Power factor 0.73
TIG:28 Arc initiation current (A) 5-200 Insulation grade F
Current range (A) 10-200 Pulse frequency (Hz) 0.5-5.0 Protection grade IP21
No-load voltage (V) 56 Basic value current (A) 5-200 Weight Kg 20
Rated output voltage (V) MMA: 28 Arc initiation current (A) 5-200 Dimensions - mm (l/w/h) 498/328/302
TIG: 18 Attenuation time (S) 0-15
AC duty cycle 20-80% Remote control Yes Max. thickness (mm) 10
