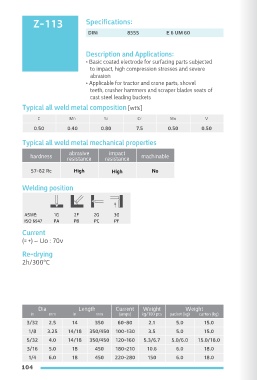

Z-113 Specifications: Specifications: Z-114
DIN: 8555 E 6 UM 60 DIN: 8555 E 6 UM 60

Description and Applications: Description and Applications:
• Basic coated electrode for surfacing parts subjected • Rutile coated electrode for surfacing parts
to impact, high compression stresses and severe subjected to abrasion and impact
abrasion • Applicable for rails truck wheels, worms, coupling
• Applicable for tractor and crane parts, shovel shafts and spindles
teeth, crusher hammers and scraper blades seats of • Non machinable weld deposit
cast steel leading buckets
Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si Cr Mo V C Mn Si Cr Mo
0.50 0.40 0.80 7.5 0.50 0.50 0.60 0.90 0.70 4.7 1.8
Typical all weld metal mechanical properties Typical all weld metal mechanical properties
abrasive impact abrasive impact
hardness resistance resistance machinable hardness resistance resistance machinable
57-62 Rc High High No 58-60 Rc High Medium No
Welding position Welding position

ASME: 1G 2F 2G 3G ASME: 1G 2F 2G 3G
ISO 6947 PA PB PC PF ISO 6947 PA PB PC PF
Current Current
)= +( ~ Uo : 70v )= +( ~ Uo : 70v
Re-drying Re-drying
2h/300ºC 1h/120ºC

Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
Dia Length Current Weight Weight
3/32 2.5 14 350 60-80 2.1 5.0 15.0 in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
1/8 3.25 14/18 350/450 100-130 3.5 5.0 15.0 3/32 2.5 14 350 75-110 2.4 5.0 15.0
5/32 4.0 14/18 350/450 120-160 5.3/6.7 5.0/6.0 15.0/18.0 1/8 3.25 14 350 110-140 3.9 5.0 15.0
3/16 5.0 18 450 180-210 10.6 6.0 18.0 5/32 4.0 14/18 350/450 150-190 6.1/7.8 5.0/6.0 15.0/18.0
1/4 6.0 18 450 220-280 150 6.0 18.0 3/16 5.0 18 450 190-260 12.3 6.0 18.0
