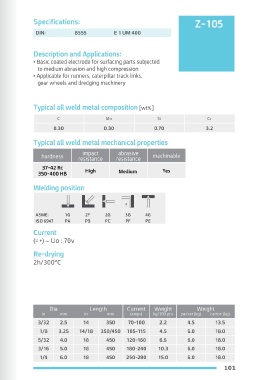

Z-104 Specifications: Specifications: Z-105
DIN: 8555 E 1 UM 300 DIN: 8555 E 1 UM 400

Description and Applications: Description and Applications:
• Basic coated abrasion resistant electrode • Basic coated electrode for surfacing parts subjected
• Machinable weld deposit to medium abrasion and high compression
• Moderate impact toughness • Applicable for runners, caterpillar track links,
• Applicable for gear teeth, brake drums, sprockets, gear wheels and dredging machinery
bushings and rail crossings

Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si Cr C Mn Si Cr
0.10 0.50 0.80 3.4 0.30 0.30 0.70 3.2
Typical all weld metal mechanical properties Typical all weld metal mechanical properties
impact abrasive impact abrasive
hardness machinable hardness machinable
resistance resistance resistance resistance
28-33 Rc 37-42 Rc
275-325 HB Good Medium Yes 350-400 HB High Medium Yes
Welding position Welding position

ASME: 1G 2F 2G 3G 4G ASME: 1G 2F 2G 3G 4G
ISO 6947 PA PB PC PF PE ISO 6947 PA PB PC PF PE
Current Current
)= +( ~ Uo : 70v )= +( ~ Uo : 70v
Re-drying Re-drying
2h/300ºC 2h/300ºC

Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( 3/32 2.5 14 350 70-100 2.2 4.5 13.5
3/32 2.5 14 350 60-80 2.1 5.0 15.0 1/8 3.25 14/18 350/450 105-115 4.5 6.0 18.0
1/8 3.25 18 450 110-130 4.5 6.0 18.0 5/32 4.0 18 450 120-160 6.6 6.0 18.0
5/32 4.0 18 450 140-180 6.7 6.0 18.0 3/16 5.0 18 450 180-240 10.3 6.0 18.0
3/16 5.0 18 450 190-240 11.2 6.0 18.0 1/4 6.0 18 450 250-290 15.0 6.0 18.0
