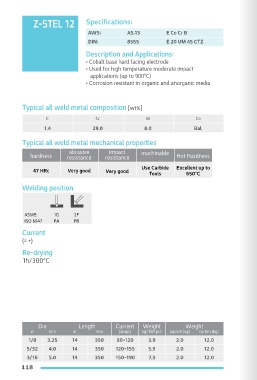

Z-STEL 12 Specifications:
AWS: A5.13 E Co Cr B
DIN: 8555 E 20 UM 45 CTZ
Description and Applications:
• Cobalt base hard facing electrode
• Used for high temperature moderate impact
applications )up to 900ºC(
• Corrosion resistant in organic and anorganic media

Typical all weld metal composition [wt%]
C Cr W Co
1.4 29.0 8.0 Bal.
Typical all weld metal mechanical properties
abrasive impact machinable
hardness resistance resistance Hot Hardness
Use Carbide Excellent up to
47 HRc Very good Very good
Tools 650ºC
Welding position

ASME: 1G 2F
ISO 6947 PA PB
Current
)= +(
Re-drying
1h/300ºC

Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
1/8 3.25 14 350 90-120 3.9 2.0 12.0
5/32 4.0 14 350 120-155 5.9 2.0 12.0
3/16 5.0 14 350 150-190 7.3 2.0 12.0
