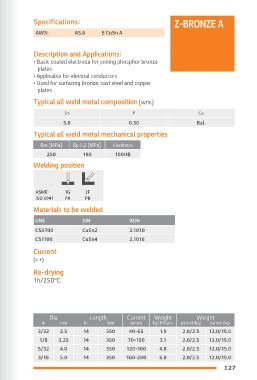

Z-Ni190 Specifications: Specifications: Z-BRONZE A
AWS: A5.11 E Ni Cu 7 AWS: A5.6 E CuSn A
EN ISO: 14172 E Ni 4060 (NiCu30Mn3Ti)
Description and Applications: Description and Applications:
• Basic coated Ni-Cu electrode for welding Ni-Cu alloy • Basic coated electrode for joining phosphor bronze
to mild and low alloy steels plates
• High resistance to sea water corrosion • Applicable for electrial conductors
• Excellent resistance to stress corrosion cracking • Used for surfacing bronze, cast steel and copper
plates
Typical all weld metal composition [wt%]
Typical all weld metal composition [wt%]
C Mn Si Cu Ti Ni
0.03 2.6 0.60 33.0 0.30 Bal. Sn P Cu
Typical all weld metal mechanical properties 5.0 0.30 Bal.
Typical all weld metal mechanical properties
Rm [MPa] Rp 0.2 [MPa] A5 [%] Impact [ISO-V]
510 320 35 120J@20°C Rm [MPa] Rp 0.2 [MPa] Hardness
Welding position 250 190 100HB
Welding position

ASME: 1G 2F 2G 3G
ISO 6947 PA PB PC PF ASME: 1G 2F
Materials to be welded ISO 6947 PA PB
Materials to be welded
ASTM UNS DIN W.Nr
Monel 400 N04400 NiCu 30 Fe 2.4360 UNS DIN W.Nr
Monel k500 N65500 LC NiCu 30 Fe 2.4361 C50700 CuSn2 2.1010
G Ni Cu 30 Nb 2.4365 C51100 CuSn4 2.1016
NiCu30 Al 2.4375
Current
NiCu 14 FeMo 2.4400 )= +(
Current Re-drying
)= +( 1h/250ºC
Re-drying
2h/300ºC

Dia Length Current Weight Weight Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
3/32 2.5 14 350 70-90 1.9 2.0 12.0 3/32 2.5 14 350 40-65 1.9 2.0/2.5 12.0/15.0
1/8 3.25 14 350 90-125 3.2 2.0 12.0 1/8 3.25 14 350 70-100 3.1 2.0/2.5 12.0/15.0
5/32 4.0 14 350 110-160 4.9 2.0 12.0 5/32 4.0 14 350 120-160 4.8 2.0/2.5 12.0/15.0
3/16 5.0 14 350 155-185 7.5 2.0 12.0 3/16 5.0 14 350 160-200 6.8 2.0/2.5 12.0/15.0
