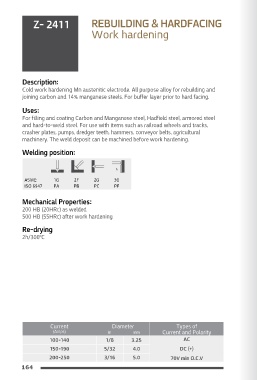

Z- 2411 REBUILDING & HARDFACING TOUGH AND HARD Z-2420
Work hardening SURFACING

Description: Description:
Cold work hardening Mn austenitic electrode. All purpose alloy for rebuilding and An electrode for components subjected to severe wear conditions. The metal
joining carbon and 14% manganese steels. For buffer layer prior to hard facing. is crack and pore free and resistant to impact stress. Can be machined only by
grinding. A buffer layer of Z-307HR electrodes is only required when welding
Uses: difficult to weld steels.
For filling and coating Carbon and Manganese steel, Hadfield steel, armored steel
and hard-to-weld steel. For use with items such as railroad wheels and tracks, Uses:
crasher plates, pumps, dredger teeth, hammers, conveyor belts, agricultural • Excavator parts.
machinery. The weld deposit can be machined before work hardening. • Dredger bucket blades.
• Gripper cogs.
Welding position: • Percussion drill bits.
• Mining tools.
• Screw conveyors.
• Beaters.
ASME: 1G 2F 2G 3G • Demolition jaws and balls.
ISO 6947 PA PB PC PF
Welding position:
Mechanical Properties:
200 HB )20HRc( as welded
500 HB )55HRc( after work hardening ASME: 1G 2F 2G 3G
ISO 6947 PA PB PC PF
Re-drying
2h/300ºC Mechanical Properties:
Hardness: 57-62HRc as welded
Re-drying
2h/300ºC

Current Diameter Types of
)Amps( in mm Current and Polarity
60-80 3/32 2.5
Current Diameter Types of AC
)Amps( in mm Current and Polarity 100-130 1/8 3.25 DC )+(
100-140 1/8 3.25 AC 140-180 5/32 4.0
150-190 5/32 4.0 DC )+( 190-240 3/16 5.0 70V min O.C.V
200-250 3/16 5.0 70V min O.C.V 220-280 1/4 6.0
