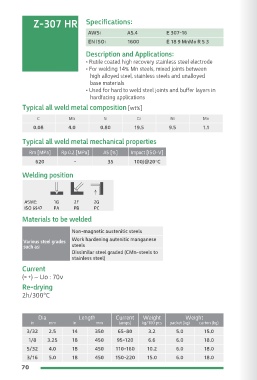

Z-307 HR Specifications: Specifications: Z-308 B
AWS: A5.4 E 307-16 AWS: A5.4 E 308 L-15
EN ISO: 1600 E 18 9 MnMo R 5 3 EN ISO: 1600 E 19 9 L B 2 2
Description and Applications: Description and Applications:
• Rutile coated high recovery stainless steel electrode • Basic coated electrode for welding austenitic
• For welding 14% Mn steels, mixed joints between stainless Cr-Ni steels
high alloyed steel, stainless steels and unalloyed • Suited for positional welding of thick plates and highly
base materials restrained joints
• Used for hard to weld steel joints and buffer layers in • Excellent resistance to cold cracking
hardfacing applications • Good mechanical properties
Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si Cr Ni Mo C Mn Si Cr Ni
0.08 4.0 0.80 19.5 9.5 1.1 0.03 1.00 0.50 19.0 10.0
Typical all weld metal mechanical properties Typical all weld metal mechanical properties
Rm [MPa] Rp 0.2 [MPa] A5 [%] Impact [ISO-V] Rm [MPa] Rp 0.2 [MPa] A5 [%] Impact [ISO-V]
620 - 35 100J@20°C 580 440 40 80J@20°C
Welding position Welding position

ASME: 1G 2F 2G ASME: 1G 2F 2G 3G 4G
ISO 6947 PA PB PC ISO 6947 PA PB PC PF PE
Materials to be welded Materials to be welded Current
)= +(
Non-magnetic austenitic steels Extra low DIN 17 X2 CrNi 19 11 1.4306
Various steel grades Work hardening autenitic manganese carbon 440/17 445 X2 CrNiN 18 10 1.4311 Re-drying
C<0.03%
such as: steels
Dissimilar steel graded (CMn-steels to Medium DIN 17 X5 CrNi 18 10 1.4301 2h/300ºC
stainless steel) carbon 440/17 445
C>0.03% G-X6 CrNi 18 9 1.4308
Current X6 CrNi Ti 18 10 1.4541
)= +( ~ Uo : 70v
Fine grained X6 CrNiNb 18 10 1.4550
Re-drying steelsTi-, Nb DIN 17
440/17 445
2h/300ºC Stabilized G-X5 CrNiNb 18 9 1.4552
Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( 5/64 2.0 12 300 40-55 1.2 1.5/2.0 9.0/12.0
3/32 2.5 14 350 65-80 3.2 5.0 15.0 3/32 2.5 12 300 55-80 1.8 1.5/2.0 9.0/12.0
1/8 3.25 18 450 95-120 6.6 6.0 18.0 1/8 3.25 14 350 75-110 3.6 2.0/2.5 12.0/15.0
5/32 4.0 18 450 110-160 10.2 6.0 18.0 5/32 4.0 14 350 110-150 5.6 2.0/2.5 12.0/15.0
3/16 5.0 18 450 150-220 15.0 6.0 18.0 3/16 5.0 18 450 140-180 10.4 6.0 18.0
