Page 83 - Technical Guidbook - Zika industrial Welding Supplies

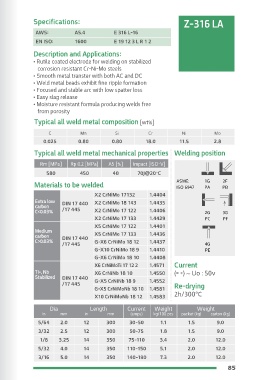

Z-316 L Specifications: Specifications: Z-316 LA
AWS: A5.4 E 316 L-16 AWS: A5.4 E 316 L-16
EN ISO: 1600 E 19 12 3 L R 1 2 EN ISO: 1600 E 19 12 3 L R 1 2
Description and Applications: Description and Applications:
• Rutile coated electrode for welding on stabilized • Rutile coated electrode for welding on stabilized
corrosion resistant Cr-Ni-Mo steels corrosion resistant Cr-Ni-Mo steels
• Smooth metal transter with both AC and DC • Smooth metal transter with both AC and DC
• Weld metal beads exhibit fine ripple formation • Weld metal beads exhibit fine ripple formation
• Focused and stable arc with low spatter loss • Focused and stable arc with low spatter loss
• Easy slag release • Easy slag release
• Moisture resistant formula producing welds free • Moisture resistant formula producing welds free
from porosity from porosity
Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si Cr Ni Mo C Mn Si Cr Ni Mo
0.025 0.80 0.80 18.0 11.5 2.8 0.025 0.80 0.80 18.0 11.5 2.8
Typical all weld metal mechanical properties Welding position Typical all weld metal mechanical properties Welding position
Rm [MPa] Rp 0.2 [MPa] A5 [%] Impact [ISO-V] Rm [MPa] Rp 0.2 [MPa] A5 [%] Impact [ISO-V]
580 450 40 70J@20°C 580 450 40 70J@20°C
ASME: 1G 2F ASME: 1G 2F
Materials to be welded ISO 6947 PA PB Materials to be welded ISO 6947 PA PB
X2 CrNiMo 17132 1.4404 X2 CrNiMo 17132 1.4404
Extra low DIN 17 440 X2 CrNiMo 18 143 1.4435 Extra low DIN 17 440 X2 CrNiMo 18 143 1.4435
carbon carbon
C<0.03% /17 445 X2 CrNiMo 17 122 1.4406 2G 3G C<0.03% /17 445 X2 CrNiMo 17 122 1.4406 2G 3G
X2 CrNiMo 17 133 1.4429 PC PF X2 CrNiMo 17 133 1.4429 PC PF
X5 CrNiMo 17 122 1.4401 X5 CrNiMo 17 122 1.4401
Medium Medium
carbon DIN 17 440 X5 CrNiMo 17 133 1.4436 carbon DIN 17 440 X5 CrNiMo 17 133 1.4436
C>0.03% G-X6 CrNiMo 18 12 1.4437 C>0.03% G-X6 CrNiMo 18 12 1.4437
/17 445 4G /17 445 4G
G-X10 CrNiMo 18 9 1.4410 PE G-X10 CrNiMo 18 9 1.4410 PE
G-X6 CrNiMo 18 10 1.4408 G-X6 CrNiMo 18 10 1.4408
X6 CrNiMoTi 17 12 2 1.4571 Current X6 CrNiMoTi 17 12 2 1.4571 Current
Ti-, Nb X6 CrNiNb 18 10 1.4550 )= +( ~ Uo : 60v Ti-, Nb X6 CrNiNb 18 10 1.4550 )= +( ~ Uo : 50v
Stabilized DIN 17 440 Stabilized DIN 17 440 G-X5 CrNiNb 18 9 1.4552
/17 445 G-X5 CrNiNb 18 9 1.4552 Re-drying /17 445 Re-drying
G-X5 CrNiMoNb 18 10 1.4581 G-X5 CrNiMoNb 18 10 1.4581
X10 CrNiMoNb 18 12 1.4583 2h/300ºC X10 CrNiMoNb 18 12 1.4583 2h/300ºC
Dia Length Current Weight Weight Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
5/64 2.0 12 300 30-50 1.1 1.5 9.0 5/64 2.0 12 300 30-50 1.1 1.5 9.0
3/32 2.5 12 300 50-75 1.8 1.5 9.0 3/32 2.5 12 300 50-75 1.8 1.5 9.0
1/8 3.25 14 350 75-110 3.4 2.0 12.0 1/8 3.25 14 350 75-110 3.4 2.0 12.0
5/32 4.0 14 350 110-150 5.1 2.0 12.0 5/32 4.0 14 350 110-150 5.1 2.0 12.0
3/16 5.0 14 350 140-190 7.3 2.0 12.0 3/16 5.0 14 350 140-190 7.3 2.0 12.0
84 85
