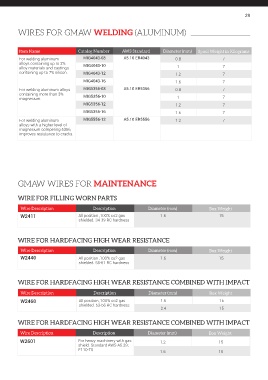

Page 29 - Product Catalog By Zika Welding
P. 29
29
WIRES FOR GMAW WELDING (ALUMINUM)
Item Name Catalog Number AWS Standard Diameter (mm) Spool Weight in Kilograms
For welding aluminum MIG4043-08 A5.10 ER4043 0.8 7
alloys containing up to 2% MIG4043-10
alloy materials and castings 1 7
containing up to 7% silicon. MIG4043-12 1.2 7
MIG4043-16 1.6 7
For welding aluminum alloys MIG5356-08 A5.10 ER5356 0.8 7
containing more than 3% MIG5356-10
magnesium. 1 7
MIG5356-12 1.2 7
MIG5356-16 1.6 7
For welding aluminum MIG5556-12 A5.10 ER5556 1.2 7
alloys with a higher level of
magnesium compering 5356,
improves resistance to cracks.
GMAW WIRES FOR MAINTENANCE
WIRE FOR FILLING WORN PARTS
Wire Description Description Diameter (mm) Box Weight
W2411 All position ,100% co2 gas 1.6 15
shielded. 34-39 RC hardness
WIRE FOR HARDFACING HIGH WEAR RESISTANCE
Wire Description Description Diameter (mm) Box Weight
W2440 All position ,100% co2 gas 1.6 15
shielded. 58-61 RC hardness
WIRE FOR HARDFACING HIGH WEAR RESISTANCE COMBINED WITH IMPACT
Wire Description Description Diameter (mm) Box Weight
W2460 All position ,100% co2 gas 1.6 15
shielded. 53-56 RC hardness
2.4 15
WIRE FOR HARDFACING HIGH WEAR RESISTANCE COMBINED WITH IMPACT
Wire Description Description Diameter (mm) Box Weight
W2601 For heavy machinery with gas 1.2 15
shield. Standard AWS A5.29;
E110-T5 1.6 15
