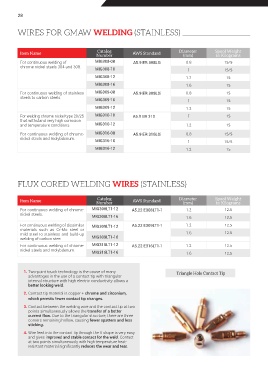

Page 28 - Product Catalog By Zika Welding

28

WIRES FOR GMAW WELDING (STAINLESS)

Catalog Diameter Spool Weight
Item Name AWS Standard
Number (mm) in Kilograms
For continuous welding of MIG308-08 A5.9 ER 308LSi 0.8 15/5
chrome-nickel steels 304 and 308.
MIG308-10 1 15/5
MIG308-12 1.2 15

MIG308-16 1.6 15
For continuous welding of stainless MIG309-08 A5.9 ER 309LSi 0.8 15
steels to carbon steels.
MIG309-10 1 15
MIG309-12 1.2 15
For welding chrome-nickel type 20/25 MIG310-10 A5.9 ER 310 1 15
that withstand very high corrosion
and temperature conditions. MIG310-12 1.2 15
For continuous welding of chrome- MIG316-08 A5.9 ER 316LSi 0.8 15/5
nickel steels and molybdenum.
MIG316-10 1 15/5
MIG316-12 1.2 15

FLUX CORED WELDING WIRES (STAINLESS)

Catalog
Item Name Number AWS Standard Diameter Spool Weight
(mm)
in Kilograms
For continuous welding of chrome- MIG308LT1-12 A5.22 E308LT1-1 1.2 12.5
nickel steels. MIG308LT1-16 1.6 12.5

For continuous welding of dissimilar MIG309LT1-12 A5.22 E309LT1-1 1.2 12.5
materials such as Cr-Mo steel or
mild steel to stainless and build-up 1.6 12.5
welding of carbon stee. MIG309LT1-16
For continuous welding of chrome- MIG316LT1-12 A5.22 E316LT1-1 1.2 12.5
nickel steels and molybdenum.
MIG316LT1-16 1.6 12.5

1. Two-point touch technology is the cause of many Triangle Hole Contact Tip
advantages in the use of a contact tip with triangular
internal structure with high electric conductivity allows a
better looking weld.
2. Contact tip material is copper + chrome and zirconium,
which permits fewer contact tip changes.
3. Contact between the welding wire and the contact tip at two
points simultaneously allows the transfer of a better
current flow. Due to the triangular structure, there are three
corners remaining hollow, causing fewer spatters and less
sticking.
4. Wire feed into the contact tip through the V shape is very easy
and gives improved and stable contact for the weld. Contact
at two points simultaneously with high temperature heat-
resistant material significantly reduces the wear and tear.
