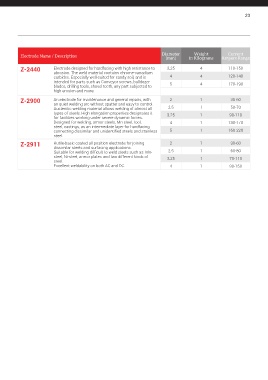

Page 23 - Product Catalog By Zika Welding

23

Diameter Weight Current
Electrode Name / Description
(mm) in Kilograms Ampere Range
Z-2440 Electrode designed for hardfacing with high resistance to 3.25 4 110-150
abrasion. The weld material contains chrome-vanadium
carbides. Especially well-suited for sandy soil, and is 4 4 120-140
intended for parts such as Conveyor screws, bulldozer 5 4 170-190
blades, drilling tools, shovel teeth, any part subjected to
high erosion and more.

Z-2900 An electrode for maintenance and general repairs, with 2 1 30-60
an quiet welding arc without spatter and easy to control.
Austenitic welding material allows welding of almost all 2.5 1 50-70
types of steels. High elongation properties designates it 3.25 1 90-110
for facilities working under severe dynamic forces.
Designed for welding, armor steels, Mn steel, tool, 4 1 130-170
steel, castings, as an intermediate layer for hardfacing,
connecting dissimilar and unidentified steels and stainless 5 1 160-220
steel.
Z-2911 Rutile-basic coated all position electrode for joining 2 1 30-60
dissimilar steels and surfacing applications.
Suitable for welding difficult to weld steels such as: Mn- 2.5 1 60-80
steel, Ni-steel, armor plates and two different kinds of 3.25 1 70-110
steel.
Excellent weldability on both AC and DC. 4 1 90-150
