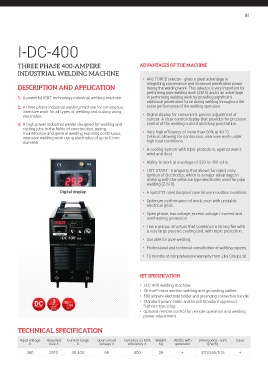

Page 81 - Product Catalog By Zika Welding

81

I-DC-400

THREE PHASE 400-AMPERE ADVANTAGES OF THE MACHINE
INDUSTRIAL WELDING MACHINE

• ARC FORCE selector - gives a great advantage in
integrating convenience and increased penetration power
DESCRIPTION AND APPLICATION during the welding work. This selector is very important for
performing pipe welding work (Z610) and is an advantage
1. A powerful IGBT technology industrial welding machine. in performing welding work by providing significant
additional penetration force during welding throughout the
2. A three phase industrial welding machine for continuous, entire performance of the welding operation.
intensive work for all types of welding and cutting using
electrodes. • Digital display for convenient, precise adjustment of
current- A clear control display that provides for precision
3. A high power industrial welder designed for welding and control of the welding current and deep penetration.
cutting jobs in the fields of construction, piping,
maintenance and general welding requiring continuous, • Very high efficiency of more than 60% at 40 °C
intensive welding work using electrodes of up to 6 mm Celsius, allowing for continuous, intensive work under
diameter. high load conditions.
• A cooling system with triple protection, against water,
wind and dust.
• Ability to work at a voltage of 320 to 450 volts.
• HOT START - a property that allows for rapid, easy
ignition of electrodes, which is a major advantage in
working with the cellulose type electrodes used for pipe
welding (Z-610).
Digital display • A rigid, IP21 rated dustproof case for use in outdoor conditions.

• Optimum performance of work, even with unstable
electrical grids.
• Open phase, low voltage, excess voltage / current and
overheating protection.
• Has a unique structure that combines a strong fan with
a very large passive cooling unit, with triple protection.

• Suitable for pipe welding.
• Professional and technical consultation of welding experts.
• 12 months of comprehensive warranty from Zika Group Ltd.

SET SPECIFICATION
• I-DC 400 welding machine.
• 35 mm cross section welding and grounding cables.
2
• 500 ampere electrode holder and grounding connection handle.
DC 3 50 60 • Standard power cable and Israeli Standard approved
3-phase type plug.
three
phase Hz
• Optional remote control for remote operation and welding
power adjustment.
TECHNICAL SPECIFICATION

Input voltage Required Current range Open circuit Currency as 60% Weight Works with Dimensions - mm Case
V fuse A A voltage V efficiency A Kg generator (l/w/h)
380 25*3 40-400 68 400 28 + 370/260/515 +
