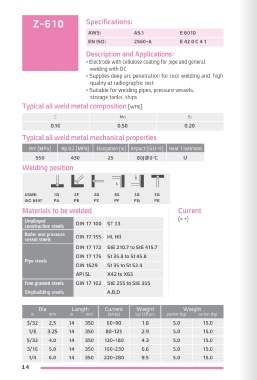

Z-610 Specifications: Specifications: Z-610 B
AWS: A5.1 E 6010 AWS: A5.1 E 6010
EN ISO: 2560-A E 42 0 C 4 1 EN ISO: 2560-A E 42 0 C 4 1
Description and Applications: Description and Applications:
• Electrode with cellulose coating for pipe and general • Electrode with cellulose coating for general welding purposes
welding with DC • Deep arc penetration , high bead quality accepted at
• Supplies deep arc penetration for root welding and high radiography tests
quality at radiographic test • for DC welding
• Suitable for welding pipes, pressure vessels, Typical all weld metal composition [wt%]
storage tanks, ships
C Mn Si
Typical all weld metal composition [wt%]
0.10 0.50 0.20
C Mn Si
0.10 0.50 0.20 Typical all weld metal mechanical properties
Typical all weld metal mechanical properties Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment
550 430 25 80J@0°C U
Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment
550 430 25 80J@0°C U Welding position
Welding position

ASME: 1G 2F 2G 3G 3G 4G
ISO 6947 PA PB PC PF PG PE
ASME: 1G 2F 2G 3G 3G 4G
ISO 6947 PA PB PC PF PG PE Materials to be welded Current
Materials to be welded Current Unalloyed DIN 17 100 ST 33 )= +(
)= +( construction steels
Unalloyed DIN 17 100 ST 33
construction steels Boiler and pressure DIN 17 155 HI, Hll
vessel steels
Boiler and pressure
vessel steels DIN 17 155 HI, Hll DIN 17 172 StE 210.7 to StE 415.7
DIN 17 172 StE 210.7 to StE 415.7 DIN 17 175 St 35.8 to St 45.8
Pipe steels
DIN 17 175 St 35.8 to St 45.8 DIN 1629 St 35 to St 52.4
Pipe steels
DIN 1629 St 35 to St 52.4 API 5L X42 to X63
API 5L X42 to X63 Fine grained steels DIN 17 102 StE 255 to StE 355
Fine grained steels DIN 17 102 StE 255 to StE 355 Shipbuilding steels A,B,D
Shipbuilding steels A,B,D
Dia Langth Current Weight Weight Dia Langth Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
3/32 2.5 14 350 60-90 1.8 5.0 15.0 3/32 2.5 14 350 60-90 1.8 5.0 15.0
1/8 3.25 14 350 80-125 2.9 5.0 15.0 1/8 3.25 14 350 80-125 2.9 5.0 15.0
5/32 4.0 14 350 120-180 4.3 5.0 15.0 5/32 4.0 14 350 120-180 4.3 5.0 15.0
3/16 5.0 14 350 160-230 6.6 5.0 15.0 3/16 5.0 14 350 160-230 6.6 5.0 15.0
1/4 6.0 14 350 220-280 9.5 5.0 15.0 1/4 6.0 14 350 220-280 9.5 5.0 15.0
