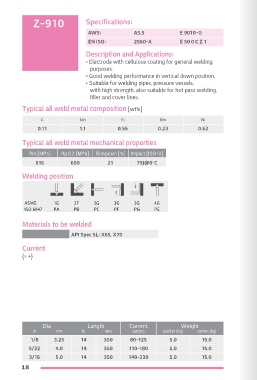

Z-910 Specifications: Specifications: Z-5
AWS: A5.5 E 9010-G AWS: A5.1 E 6012
EN ISO: 2560-A E 50 0 C Z 1 EN ISO: 2560-A E 42 0 R 1 2
Description and Applications: Description and Applications:
• Electrode with cellulose coating for general welding Rutile Coated all position electrode. Suitable for wide
purposes. range of applications as construction, bridges, machines
• Good welding performance in vertical down position. parts, boilers. Can use on badly prepared surfaces.
• Suitable for welding pipes, pressure vessels,
with high strength, also suitable for hot pass welding,
filler and cover lines.
Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si Mo Ni C Mn Si
0.11 1.1 0.55 0.23 0.62 0.08 0.50 0.30
Typical all weld metal mechanical properties Typical all weld metal mechanical properties
Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V]
616 690 21 79J@0°C 480-560 400 24 60J@0°C
Welding position Welding position

ASME: 1G 2F 2G 3G 3G 4G ASME: 1G 2F 2G 3G 3G 4G
ISO 6947 PA PB PC PF PG PE ISO 6947 PA PB PC PF PG PE
Materials to be welded Materials to be welded
Unalloyed
API Spec 5L: X65, X70 construction steels DIN 17 100 St 33, St 37.2 to St 44.3
DIN 17 172 StE 210.7 to StE 360.7
Current
)= +( Pipe steels DIN 1629 St 35 to St 52.4
API 5L X42, X46
Cast steels DIN 1681 GS 38
Shipbuilding steels A,B,C,D
Current
)= -( ~ Uo :50v

Dia Langth Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
Dia Langth Current Weight
in mm in mm )amps( packet )kg( carton )kg( 3/32 2.5 14 350 65-85 1.8 5.0 15.0
1/8 3.25 14 350 80-125 5.0 15.0 1/8 3.25 14 350 80-120 3.0 5.0 15.0
5/32 4.0 14 350 110-180 5.0 15.0 5/32 4.0 14 350 120-180 4.5 5.0 15.0
3/16 5.0 14 350 140-230 5.0 15.0 3/16 5.0 14 350 180-230 6.8 5.0 15.0
