P. 18

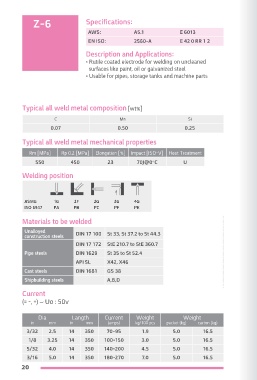

Z-6 Specifications: Specifications: Z-9
AWS: A5.1 E 6013 AWS: A5.1 E 6013
EN ISO: 2560-A E 42 0 RR 1 2 EN ISO: 2560-A E 42 0 R 1 2
Description and Applications: Description and Applications:
• Rutile coated electrode for welding on uncleaned • Electrode with organic-rutile coating for welding
surfaces like paint, oil or galvanized steel general structural steels
• Usable for pipes, storage tanks and machine parts • Easy slag release and soft welding arc
Typical all weld metal composition [wt%]
Typical all weld metal composition [wt%]
C Mn Si
C Mn Si 0.08 0.50 0.30
0.07 0.50 0.25
Typical all weld metal mechanical properties
Typical all weld metal mechanical properties
Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment
Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment
520 400 24 70J@0°C U
550 450 23 70J@0°C U
Welding position
Welding position
ASME: 1G 2F 2G 3G 4G
ASME: 1G 2F 2G 3G 4G ISO 6947 PA PB PC PF PE
ISO 6947 PA PB PC PF PE
Materials to be welded Materials to be welded Current
Unalloyed Unalloyed DIN 17 100 St 33, St 37.2 to St 44.3 (= -, +) ~ Uo : 50v
construction steels DIN 17 100 St 33, St 37.2 to St 44.3 construction steels
DIN 17 172 StE 210.7 to StE 360.7 DIN 17 172 StE 210.7 to StE 360.7
Pipe steels DIN 1629 St 35 to St 52.4 Pipe steels DIN 1629 St 35 to St 52.4
API 5L X42, X46 API 5L X42, X46
Cast steels DIN 1681 GS 38 Cast steels DIN 1681 GS 38
Shipbuilding steels A,B,D Shipbuilding steels A,B,C,D
Current
(= -, +) ~ Uo : 50v
Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
Dia Langth Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( 5/64 2.0 12 300 55-85 1.1 4.0 12.0
3/32 2.5 14 350 70-95 1.9 5.0 16.5 3/32 2.5 14 350 70-100 1.9 5.5 16.5
1/8 3.25 14 350 100-150 3.0 5.0 16.5 1/8 3.25 14 350 100-150 3.0 5.5 16.5
5/32 4.0 14 350 140-200 4.5 5.0 16.5 5/32 4.0 14 350 140-200 4.5 5.5 16.5
3/16 5.0 14 350 180-270 7.0 5.0 16.5 3/16 5.0 14/18 350/450 180-230 7.0/9.0 5.5/7.0 16.5/21
