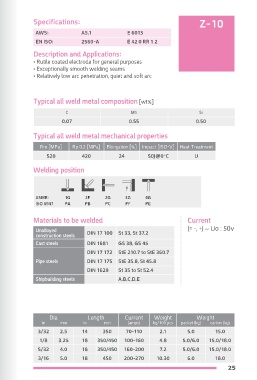

Z-15 Specifications: Specifications: Z-10
AWS: A5.1 E 6013 AWS: A5.1 E 6013
EN ISO: 2560-A E 38 0 RR 1 2 EN ISO: 2560-A E 42 0 RR 1 2
Description and Applications: Description and Applications:
• Heavy coated rutile electrode for general purposes • Rutile coated electrode for general purposes
• Very even weld in flat and fillet positions • Exceptionally smooth welding seams
• Suitable for welding of thin sheets, structures, machine • Relatively low arc penetration, quiet and soft arc
parts.
• Very low sputtering ans usually self pealing slag.
Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si C Mn Si
0.09 0.60 0.50 0.07 0.55 0.50
Typical all weld metal mechanical properties Typical all weld metal mechanical properties
Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment
480 400 24 60J@0°C U 520 420 24 50J@0°C U
Welding position Welding position

ASME: 1G 2F 2G ASME: 1G 2F 2G 3G 4G
ISO 6947 PA PB PC ISO 6947 PA PB PC PF PE
Materials to be welded Current Materials to be welded Current
(= -, +) ~ Uo : 50v (= -, +) ~ Uo : 50v
Unalloyed Unalloyed
construction steels DIN 17 100 St 33, St 37.2 construction steels DIN 17 100 St 33, St 37.2
Cast steels DIN 1681 GS 38, GS45 Cast steels DIN 1681 GS 38, GS 45
DIN 17 172 StE 210.7 to StE 360.7 DIN 17 172 StE 210.7 to StE 360.7
Pipe steels DIN 17 175 StE 35.8, St 45.8 Pipe steels DIN 17 175 StE 35.8, St 45.8
DIN 1629 St 35 to St 52.4 DIN 1629 St 35 to St 52.4
Shipbuilding steels A,B,C,D,E Shipbuilding steels A,B,C,D,E

Dia Length Current Weight Weight Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
3/32 2.5 14 350 70-110 2.1 5.0 15.0 3/32 2.5 14 350 70-110 2.1 5.0 15.0
1/8 3.25 18 450 100-160 4.8 6.0 18.0 1/8 3.25 18 350/450 100-160 4.8 5.0/6.0 15.0/18.0
5/32 4.0 18 450 160-200 7.2 6.0 18.0 5/32 4.0 18 350/450 160-200 7.2 5.0/6.0 15.0/18.0
3/16 5.0 18 450 200-270 10.3 6.0 18.0 3/16 5.0 18 450 200-270 10.30 6.0 18.0
