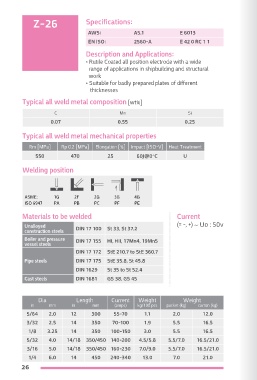

Z-26 Specifications: Specifications: Z-16
AWS: A5.1 E 6013 AWS: A5.1 E 7014
EN ISO: 2560-A E 42 0 RC 1 1 EN ISO: 2560-A E 46 0 RR 3 2
Description and Applications: Description and Applications:
• Rutile Coated all position electrode with a wide • Thick rutile electrode for fast deposition rate
range of applications in shipbuilding and structural • Focused, stable and penetrating arc, smooth bead.
work • Self detaching slag
• Suitable for badly prepared plates of different • Suitable for badly prepared plates of different
thicknesses thicknesses
Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si C Mn Si
0.07 0.55 0.25 0.08 0.60 0.25
Typical all weld metal mechanical properties Typical all weld metal mechanical properties
Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment
550 470 25 60J@0°C U 540 460 25 70J@0°C U
Welding position Welding position

ASME: 1G 2F 2G 3G 4G ASME: 1G 2F 2G 3G 4G
ISO 6947 PA PB PC PF PE ISO 6947 PA PB PC PF PE
Materials to be welded Current Materials to be welded Current
Unalloyed DIN 17 100 St 33, St 37.2 (= -, +) ~ Uo : 50v Unalloyed DIN 17 100 St 33, St 37.2 to St 52.3 )= -( ~ Uo : 50v
construction steels construction steels
Boiler and pressure DIN 17 155 HI, HII, 17Mn4, 19Mn5 Boiler and pressure DIN 17 155 HI, HII, 17Mn4, 19Mn5
vessel steels vessel steels
DIN 17 172 StE 210.7 to StE 360.7 DIN 17 172 StE 210.7 to StE 360.7
Pipe steels DIN 17 175 StE 35.8, St 45.8 Pipe steels DIN 17 175 St 35.8, St 45.8
DIN 1629 St 35 to St 52.4 DIN 1629 St 35 to St 52.4
Cast steels DIN 1681 GS 38, GS 45 Cast steels DIN 1681 GS 38, GS 45

Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( Dia Length Current Weight Weight
5/64 2.0 12 300 55-70 1.1 2.0 12.0 in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
3/32 2.5 14 350 70-100 1.9 5.5 16.5 5/64 2.0 12 300 50-70 1.1 4.0 12.0
1/8 3.25 14 350 100-150 3.0 5.5 16.5 3/32 2.5 14 350 60-100 2.0 5.0 15.0
5/32 4.0 14/18 350/450 140-200 4.5/5.8 5.5/7.0 16.5/21.0 1/8 3.25 14 350 110-150 3.6 5.0 15.0
3/16 5.0 14/18 350/450 160-230 7.0/9.0 5.5/7.0 16.5/21.0 5/32 4.0 14 350 130-170 4.9 5.0 15.0
1/4 6.0 14 450 240-340 13.0 7.0 21.0 3/16 5.0 14 350 190-230 7.5 5.0 15.0
