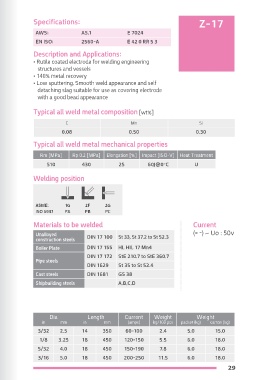

Z-16 S Specifications: Specifications: Z-17
AWS: A5.1 E 7024 AWS: A5.1 E 7024
EN ISO: 2560-A E 42 0 RR 7 3 EN ISO: 2560-A E 42 0 RR 5 3
Description and Applications: Description and Applications:
• Thick rutile electrode for fast deposition rate 160%. • Rutile coated electrode for welding engineering
• Focused, stable and penetrating arc structures and vessels
• Self detaching slag • 140% metal recovery
• Suitable for plates of different thicknesses • Low sputtering, Smooth weld appearance and self
detaching slag suitable for use as covering electrode
with a good bead appearance
Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si C Mn Si
0.08 0.70 0.25 0.08 0.50 0.30
Typical all weld metal mechanical properties Typical all weld metal mechanical properties
Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment
530 440 28 45J@-20°C 510 430 25 60J@0°C U
Welding position Welding position

ASME: 1G 2F ASME: 1G 2F 2G
ISO 6947 PA PB ISO 6947 PA PB PC
Materials to be welded Materials to be welded Current
Unalloyed Unalloyed )= -( ~ Uo : 50v
construction steels DIN 17 100 St 33, St 37.2 to St 52.3 construction steels DIN 17 100 St 33, St 37.2 to St 52.3
Boiler and pressure DIN 17 155 HI, HII, 17Mn4 Boiler Plate DIN 17 155 HI, HII, 17 Mn4
vessel steels DIN 17 172 StE 210.7 to StE 360.7
Cast steels DIN 1681 GS 38 Pipe steels
DIN 1629 St 35 to St 52.4
Shipbuilding steels A,B,C,D
Cast steels DIN 1681 GS 38
Current Shipbuilding steels A,B,C,D
)= -( ~ Uo : 50v

Dia Length Current Weight Weight Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
1/8 3.25 12 450 130-180 6.5 6.0 18.0 3/32 2.5 14 350 60-100 2.4 5.0 15.0
5/32 4.0 14 450 180-240 10.0 6.0 18.0 1/8 3.25 18 450 120-150 5.5 6.0 18.0
3/16 5.0 14 450 200-280 15.0 6.0 18.0 5/32 4.0 18 450 150-190 7.8 6.0 18.0
1/4 6.0 14 450 290-420 19.5 6.0 18.0 3/16 5.0 18 450 200-250 11.5 6.0 18.0
