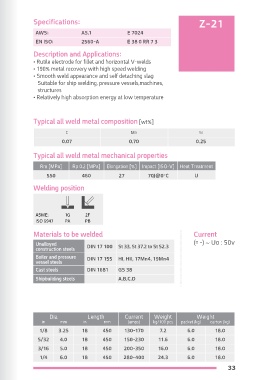

Z-20 Specifications: Specifications: Z-21
AWS: A5.1 E 7024 -1 AWS: A5.1 E 7024
EN ISO: 2560-A E 46 2 RR 7 3 EN ISO: 2560-A E 38 0 RR 7 3
Description and Applications: Description and Applications:
• High speed, high deposit (160% metal recovery), • Rutile electrode for fillet and horizontal V-welds
rutile electrode • 190% metal recovery with high speed welding
• Ideal for very fast fillet welding and for filling • Smooth weld appearance and self detaching slag
horizontal grooves Suitable for ship welding, pressure vessels,machines,
• Fully controlled molten pool, spatter free and self structures
detaching slag • Relatively high absorption energy at low temperature
• Suitable for welding on moderate and thick plates
for buildings, bridges, shipbuilding, etc
Typical all weld metal composition [wt%] Typical all weld metal composition [wt%]
C Mn Si C Mn Si
0.09 0.85 0.45 0.07 0.70 0.25
Typical all weld metal mechanical properties Typical all weld metal mechanical properties
Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment Rm [MPa] Rp 0.2 [MPa] Elongation [%] Impact [ISO-V] Heat Treatment
65J@0°C 550 460 27 70J@0°C U
550 460 25 U
50J@-20°C
Welding position
Welding position

ASME: 1G 2F
ASME: 1G 2F ISO 6947 PA PB
ISO 6947 PA PB
Materials to be welded Current
Materials to be welded Current Unalloyed )= -( ~ Uo : 50v
Unalloyed DIN 17 100 St 33, St 37.2 to St 52.3 )= -( ~ Uo : 50v construction steels DIN 17 100 St 33, St 37.2 to St 52.3
construction steels Boiler and pressure
Boiler and pressure DIN 17 155 HI, HII, 17Mn4 vessel steels DIN 17 155 HI, HII, 17Mn4, 19Mn4
vessel steels Cast steels DIN 1681 GS 38
Cast steels DIN 1681 GS 38
Shipbuilding steels A,B,C,D
Shipbuilding steels A,B,C,D

Dia Length Current Weight Weight Dia Length Current Weight Weight
in mm in mm )amps( kg/100 pcs packet )kg( carton )kg( in mm in mm )amps( kg/100 pcs packet )kg( carton )kg(
1/8 3.25 18 450 130-170 7.2 6.0 18.0 1/8 3.25 18 450 130-170 7.2 6.0 18.0
5/32 4.0 18 450 150-230 10.6 6.0 18.0 5/32 4.0 18 450 150-230 11.6 6.0 18.0
3/16 5.0 18 450 200-350 16.0 6.0 18.0 3/16 5.0 18 450 200-350 16.0 6.0 18.0
1/4 6.0 18 450 280-480 23.8 6.0 18.0 1/4 6.0 18 450 280-400 24.3 6.0 18.0
