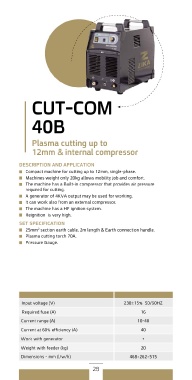

CUT-COM
40B

Plasma cutting up to
12mm & internal compressor

DESCRIPTION AND APPLICATION
Compact machine for cutting up to 12mm, single-phase.
Machines weight only 20kg allows mobility job and comfort.
The machine has a Built-in compressor that provides air pressure
required for cutting.
A generator of 4KVA output may be used for working.
It can work also from an external compressor.
The machine has a HF ignition system.
Reignition is very high.

SET SPECIFICATION
25mm2 section earth cable, 2m length & Earth connection handle.
Plasma cutting torch 70A.
Pressure Gauge.

Input voltage (V) 230±15% 50/60HZ
Required fuse (A) 16
Current range (A)
Current at 60% efficiency (A) 10-40
Work with generator 40
Weight with feeder (kg) +
Dimensions – mm (l/w/h) 20

468×262×515
