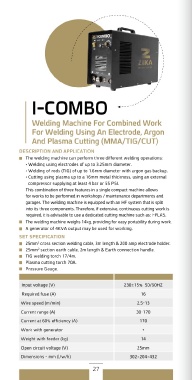

Page 27 - Machine Catalog 2017 By Zika Welding

I-COMBO

Welding Machine For Combined Work
For Welding Using An Electrode, Argon
And Plasma Cutting (MMA/TIG/CUT)

DESCRIPTION AND APPLICATION

The welding machine can perform three different welding operations:
• Welding using electrodes of up to 3.25mm diameter.
• Welding of rods (TIG) of up to 1.6mm diameter with argon gas backup.
• Cutting using plasma up to a 16mm metal thickness, using an external
compressor supplying at least 4 bar or 55 PSI.
This combination of three features in a single compact machine allows
for works to be performed in workshops / maintenance departments and
garages. The welding machine is equipped with an HF system that is split
into its three components. Therefore, if extensive, continuous cutting work is
required, it is advisable to use a dedicated cutting machine such as: I-PLAS.

The welding machine weighs 14kg, providing for easy portability during work.

A generator of 4KVA output may be used for working.

SET SPECIFICATION

25mm2 cross section welding cable, 3m length & 200 amp electrode holder.
25mm2 section earth cable, 2m length & Earth connection handle.
TIG welding torch 17/4m.
Plasma cutting torch 70A.
Pressure Gauge.

Input voltage (V) 230±15% 50/60HZ
Required fuse (A) 16
Wire speed (m/min)
Current range (A) 2.5-13
Current at 60% efficiency (A) 30-170
Work with generator
Weight with feeder (kg) 170
Open circuit voltage (V) +
Dimensions – mm (l/w/h) 14

25mm
302×204×432
