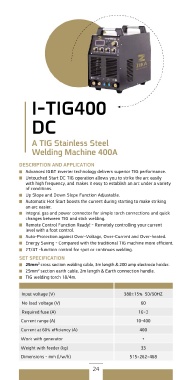

Page 24 - Machine Catalog 2017 By Zika Welding

I-TIG400
DC

A TIG Stainless Steel
Welding Machine 400A

DESCRIPTION AND APPLICATION

Advanced IGBT inverter technology delivers superior TIG performance.
Untouched Start DC TIG operation allows you to strike the arc easily

with high frequency, and makes it easy to establish an arc under a variety
of conditions.
Up Slope and Down Slope Function Adjustable.
Automatic Hot Start boosts the current during starting to make striking
an arc easier.
Integral gas and power connector for simple torch connections and quick
changes between TIG and stick welding.
Remote Control Function Ready! - Remotely controlling your current
level with a foot control.
Auto-Protection against Over-Voltage, Over-Current and Over-heated.
Energy Saving - Compared with the traditional TIG machine more efficient.

2T/4T –function control for spot or continues welding.

SET SPECIFICATION
25mm2 cross section welding cable, 3m length & 200 amp electrode holder.
25mm2 section earth cable, 2m length & Earth connection handle.
TIG welding torch 18/4m.

Input voltage (V) 380±15% 50/60HZ
No load voltage (V) 60
Required fuse (A) 16×3
Current range (A)
Current at 60% efficiency (A) 10-400
Work with generator 400
Weight with feeder (kg) +
Dimensions – mm (l/w/h) 33

515×262×468

24
