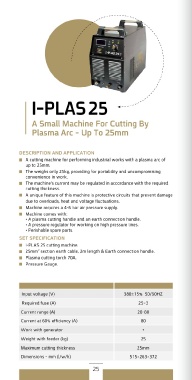

I-PLAS 25

A Small Machine For Cutting By
Plasma Arc – Up To 25mm

DESCRIPTION AND APPLICATION
A cutting machine for performing industrial works with a plasma arc of
up to 25mm.
The weighs only 25kg, providing for portability and uncompromising
convenience in work.
The machine’s current may be regulated in accordance with the required
cutting thickness.
A unique feature of this machine is protective circuits that prevent damage
due to overloads, heat and voltage fluctuations.
Machine requires a 4-6 bar air pressure supply.
Machine comes with:
• A plasma cutting handle and an earth connection handle.
• A pressure regulator for working on high pressure lines.
• Perishable spare parts.

SET SPECIFICATION
I-PLAS 25 cutting machine.
25mm2 section earth cable, 2m length & Earth connection handle.
Plasma cutting torch 70A.
Pressure Gauge.

Input voltage (V) 380±15% 50/60HZ
Required fuse (A) 25×3
Current range (A) 20-80
Current at 60% efficiency (A) 80
Work with generator +
Weight with feeder (kg) 25
Maximum cutting thickness 25mm
Dimensions – mm (l/w/h)
515×263×372
