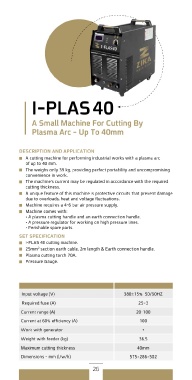

Page 26 - Machine Catalog 2017 By Zika Welding

I-PLAS 40

A Small Machine For Cutting By
Plasma Arc – Up To 40mm

DESCRIPTION AND APPLICATION
A cutting machine for performing industrial works with a plasma arc
of up to 40 mm.
The weighs only 39 kg, providing perfect portability and uncompromising
convenience in work.
The machine’s current may be regulated in accordance with the required
cutting thickness.
A unique feature of this machine is protective circuits that prevent damage
due to overloads, heat and voltage fluctuations.
Machine requires a 4-6 bar air pressure supply.
Machine comes with:
• A plasma cutting handle and an earth connection handle.
• A pressure regulator for working on high pressure lines.
• Perishable spare parts.

SET SPECIFICATION
I-PLAS 40 cutting machine.
25mm2 section earth cable, 2m length & Earth connection handle.
Plasma cutting torch 70A.
Pressure Gauge.

Input voltage (V) 380±15% 50/60HZ
Required fuse (A) 25×3
Current range (A) 20-100
Current at 60% efficiency (A) 100
Work with generator +
Weight with feeder (kg) 36.5
Maximum cutting thickness 40mm
Dimensions – mm (l/w/h)
575×286×502
