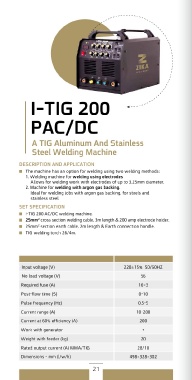

I-TIG 200
PAC/DC

A TIG Aluminum And Stainless
Steel Welding Machine

DESCRIPTION AND APPLICATION

The machine has an option for welding using two welding methods:
1. Welding machine for welding using electrodes
Allows for welding work with electrodes of up to 3.25mm diameter.
2. Machine for welding with argon gas backing.
Ideal for welding jobs with argon gas backing, for steels and
stainless steel.

SET SPECIFICATION

I-TIG 200 AC/DC welding machine.
25mm2 cross section welding cable, 3m length & 200 amp electrode holder.
25mm2 section earth cable, 2m length & Earth connection handle.
TIG welding torch 26/4m.

Input voltage (V) 220±15% 50/60HZ
No load voltage (V) 56
Required fuse (A)
Post-flow time (S) 16×3
Pulse frequency (Hz) 0-10
Current range (A) 0.5-5
Current at 60% efficiency (A) 10-200
Work with generator 200
Weight with feeder (kg)
Rated output current (A) MMA/TIG +
Dimensions – mm (l/w/h) 20
28/18
21 498×328×302
