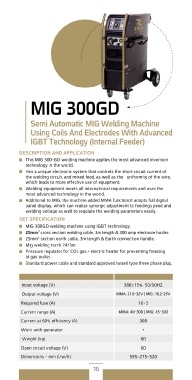

Page 16 - Machine Catalog 2017 By Zika Welding

MIG 300GD

Semi Automatic MIG Welding Machine
Using Coils And Electrodes With Advanced
IGBT Technology (Internal Feeder)

DESCRIPTION AND APPLICATION

This MIG 300-GD welding machine applies the most advanced inversion
technology in the world.

Has a unique electronic system that controls the short circuit current of
the welding circuit, and mixed feed, as well as the uniformity of the wire,
which leads to more effective use of equipment.

Welding equipment meets all international requirements and uses the
most advanced technology in the world.

Additional to MIG, the machine added MMA function.It adopts full digital
panel display, which can realize synergic adjustment to feedings peed and
welding voltage as well to regulate the welding parameters easily.

SET SPECIFICATION

MIG 300GD welding machine using IGBT technology.
25mm2 cross section welding cable, 3m length & 300 amp electrode holder.
25mm2 section earth cable, 3m length & Earth connection handle.
Mig welding torch 24/3m.
Pressure regulator for CO2 gas + electric heater for preventing freezing

at gas outlet.
Standard power cable and standard approved Israeli type three phase plug.

Input voltage (V) 380±15% 50/60HZ
Output voltage (V) MMA: 21.6-32V | MIG: 16.2-29V
Required fuse (A)
Current range (A) 16×3
Current at 60% efficiency (A) MMA: 40-300 | MIG: 45-300
Work with generator
Weight (kg) 300
Open circuit voltage (V) +
Dimensions – mm (l/w/h) 60
60

595×275×520

16
