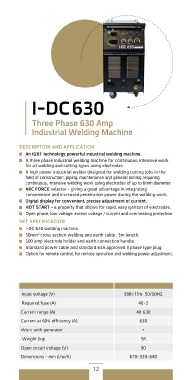

Page 12 - Machine Catalog 2017 By Zika Welding

I-DC 630

Three Phase 630 Amp
Industrial Welding Machine

DESCRIPTION AND APPLICATION
An IGBT technology powerful industrial welding machine.
A three phase industrial welding machine for continuous, intensive work
for all welding and cutting types using electrodes.
A high power industrial welder designed for welding cutting jobs in the
field of construction, piping, maintenance and general joining requiring
continuous, intensive welding work using electrodes of up to 6mm diameter.
ARC FORCE selector – giving a great advantage in integrating
convenience and increased penetration power during the welding work.
Digital display for convenient, precise adjustment of current.
HOT START – a property that allows for rapid, easy ignition of electrodes.
Open phase, low voltage, excess voltage / current and overheating protection

SET SPECIFICATION
I-DC 630 welding machine.
50mm2 cross section welding and earth cable , 3m length.
500 amp electrode holder and earth connection handle.
Standard power cable and standard 63A approved 3 phase type plug.
Option for remote control, for remote operation and welding power adjustment.

Input voltage (V) 380±15% 50/60HZ
Required fuse (A) 40×3
Current range (A) 40-630
Current at 60% efficiency (A) 630
Work with generator +
Weight (kg) 58
Open circuit voltage (V) 90
Dimensions – mm (l/w/h)
670×320×640
