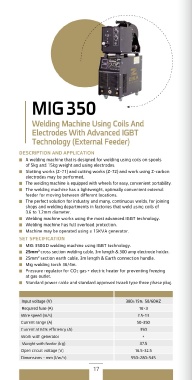

Page 17 - Machine Catalog 2017 By Zika Welding

MIG 350

Welding Machine Using Coils And
Electrodes With Advanced IGBT
Technology (External Feeder)

DESCRIPTION AND APPLICATION

A welding machine that is designed for welding using coils on spools
of 5kg and 15kg weight and using electrodes.

Slotting works (Z-71) and cutting works (Z-72) and work using Z-carbon
electrodes may be performed.

The welding machine is equipped with wheels for easy, convenient portability.
The welding machine has a lightweight, optimally convenient external

feeder for moving between different locations.
The perfect solution for industry and many, continuous welds, for joining

shops and welding departments in factories that weld using coils of
0.6 to 1.2mm diameter.
Welding machine works using the most advanced IGBT technology.
Welding machine has full overload protection.
Machine may be operated using a 15KVA generator.

SET SPECIFICATION

MIG 350GD welding machine using IGBT technology.
25mm2 cross section welding cable, 3m length & 300 amp electrode holder.
25mm2 section earth cable, 3m length & Earth connection handle.
Mig welding torch 36/4m.
Pressure regulator for CO2 gas + electric heater for preventing freezing

at gas outlet.
Standard power cable and standard approved Israeli type three phase plug.

Input voltage (V) 380±15% 50/60HZ
Required fuse (A) 16×3
Wire speed (m/s) 2.5-13
Current range (A) 50-350
Current at 60% efficiency (A) 350
Work with generator +
Weight with feeder (kg) 37.5
Open circuit voltage (V)
Dimensions – mm (l/w/h) 16.5-32.5
550×280×545

17
