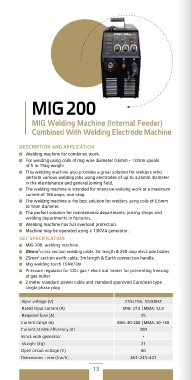

Page 13 - Machine Catalog 2017 By Zika Welding

MIG 200

MIG Welding Machine (Internal Feeder)
Combined With Welding Electrode Machine

DESCRIPTION AND APPLICATION

Welding machine for combined work.

For welding using coils of mig wire diameter 0.6mm – 1.0mm spools
of 5 to 15kg weight.

This welding machine also provides a great solution for welders who
perform various welding jobs using electrodes of up to 3.25mm diameter
in the maintenance and general joining field.

The welding machine is intended for intensive welding work at a maximum
current of 166 amps, non-stop.

The welding machine is the best solution for welders using coils of 0.6mm
to 1mm diameter.

The perfect solution for maintenance departments, joining shops and
welding departments in factories.

Welding machine has full overload protection.

Machine may be operated using a 10KVA generator.

SET SPECIFICATION

MIG 200 welding machine.

25mm2 cross section welding cable, 3m length & 200 amp electrode holder.

25mm2 section earth cable, 3m length & Earth connection handle.

Mig welding torch 15AK/3m.

Pressure regulator for CO2 gas + electrical heater for preventing freezing
at gas outlet.

2 meter standard power cable and standard approved European type
single phase plug.

Input voltage (V) 230±15% 50/60HZ
Rated input current (A) MIG: 37.5 | MMA: 32.9
Required fuse (A)
Current range (A) 25
Current at 60% efficiency (A) MIG: 40-200 | MMA: 30-160
Work with generator
Weight (kg) 200
Open circuit voltage (V) +
Dimensions – mm (l/w/h) 21
60

467×243×447
