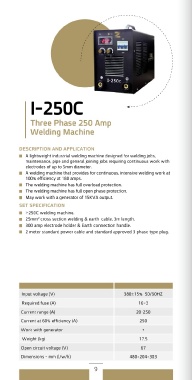

I-250C

   Three Phase 250 Amp
   Welding Machine

DESCRIPTION AND APPLICATION
 	 A lightweight industrial welding machine designed for welding jobs,
   maintenance, pipe and general joining jobs requiring continuous work with
   electrodes of up to 5mm diameter.
 	 A welding machine that provides for continuous, intensive welding work at
   100% efficiency at 180 amps.
 	 The welding machine has full overload protection.
 	 The welding machine has full open phase protection.
 	 May work with a generator of 15KVA output.

SET SPECIFICATION
 	 I-250C welding machine.
 	25mm2 cross section welding & earth cable, 3m length.
 	 300 amp electrode holder & Earth connection handle.
 	 2 meter standard power cable and standard approved 3 phase type plug.

Input voltage (V)                 380±15% 50/60HZ
Required fuse (A)                         16×3
Current range (A)                        20-250
Current at 60% efficiency (A)              250
Work with generator                          +
Weight (kg)                                17.5
Open circuit voltage (V)                    67
Dimensions – mm (l/w/h)
                                     480×204×303
