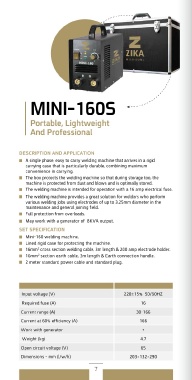

MINI-160S

   Portable, Lightweight
   And Professional

DESCRIPTION AND APPLICATION
 	 A single phase, easy to carry welding machine that arrives in a rigid
   carrying case that is particularly durable, combining maximum
   convenience in carrying.
 	 The box protects the welding machine so that during storage too, the
   machine is protected from dust and blows and is optimally stored.
 	 The welding machine is intended for operation with a 16 amp electrical fuse.
 	 The welding machine provides a great solution for welders who perform
   various welding jobs using electrodes of up to 3.25mm diameter in the
   maintenance and general joining field.
 	 Full protection from overloads.
 	 May work with a generator of 8KVA output.

SET SPECIFICATION
 	 Mini-160 welding machine.
 	 Lined rigid case for protecting the machine.
 	16mm2 cross section welding cable, 3m length & 200 amp electrode holder.
 	16mm2 section earth cable, 3m length & Earth connection handle.
 	 2 meter standard power cable and standard plug.

Input voltage (V)                 220±15% 50/60HZ
Required fuse (A)                           16
Current range (A)
Current at 60% efficiency (A)            30-166
Work with generator                        166
Weight (kg)                                  +
Open circuit voltage (V)                    4.7
Dimensions – mm (l/w/h)                     65

                                     203×132×290
