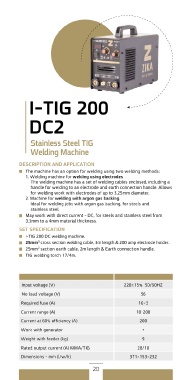

Page 20 - Machine Catalog 2017 By Zika Welding

I-TIG 200
DC2

Stainless Steel TIG
Welding Machine

DESCRIPTION AND APPLICATION

The machine has an option for welding using two welding methods:
1. Welding machine for welding using electrodes
The welding machine has a set of welding cables enclosed, including a
handle for welding to an electrode and earth connection handle. Allows
for welding work with electrodes of up to 3.25mm diameter.
2. Machine for welding with argon gas backing.
Ideal for welding jobs with argon gas backing, for steels and
stainless steel.

May work with direct current – DC, for steels and stainless steel from
0.3mm to a 4mm material thickness.

SET SPECIFICATION

I-TIG 200 DC welding machine.
25mm2 cross section welding cable, 3m length & 200 amp electrode holder.
25mm2 section earth cable, 2m length & Earth connection handle.
TIG welding torch 17/4m.

Input voltage (V) 220±15% 50/60HZ
No load voltage (V) 56
Required fuse (A)
Current range (A) 16×3
Current at 60% efficiency (A) 10-200
Work with generator
Weight with feeder (kg) 200
Rated output current (A) MMA/TIG +
Dimensions – mm (l/w/h) 9

20 28/18
371×153×232
