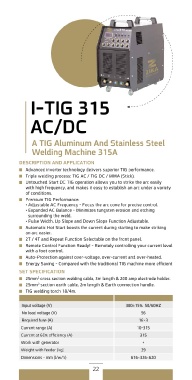

Page 22 - Machine Catalog 2017 By Zika Welding

I-TIG 315
AC/DC

A TIG Aluminum And Stainless Steel
Welding Machine 315A

DESCRIPTION AND APPLICATION

Advanced inverter technology delivers superior TIG performance.
Triple welding process: TIG AC / TIG DC / MMA (Stick).
Untouched Start DC TIG operation allows you to strike the arc easily

with high frequency, and makes it easy to establish an arc under a variety
of conditions.
Premium TIG Performance:
• Adjustable AC Frequency – Focus the arc cone for precise control.
• Expanded AC Balance – Minimizes tungsten erosion and etching

surrounding the weld.
• Pulse Width, Up Slope and Down Slope Function Adjustable.
Automatic Hot Start boosts the current during starting to make striking
an arc easier.
2T / 4T and Repeat Function Selectable on the front panel.
Remote Control Function Ready! - Remotely controlling your current level
with a foot control.
Auto-Protection against over-voltage, over-current and over-heated.
Energy Saving - Compared with the traditional TIG machine more efficient

SET SPECIFICATION

25mm2 cross section welding cable, 3m length & 200 amp electrode holder.
25mm2 section earth cable, 2m length & Earth connection handle.
TIG welding torch 18/4m.

Input voltage (V) 380±15% 50/60HZ
No load voltage (V) 56
Required fuse (A) 16×3
Current range (A)
Current at 60% efficiency (A) 10-315
Work with generator 315
Weight with feeder (kg) +
Dimensions – mm (l/w/h) 39

616×326×620
