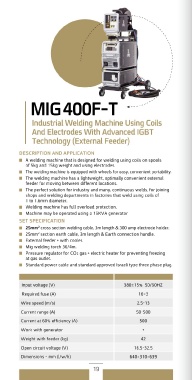

Page 19 - Machine Catalog 2017 By Zika Welding
P. 19
MIG400F-T
Industrial Welding Machine Using Coils
And Electrodes With Advanced IGBT
Technology (External Feeder)
DESCRIPTION AND APPLICATION
A welding machine that is designed for welding using coils on spools
of 5kg and 15kg weight and using electrodes.
The welding machine is equipped with wheels for easy, convenient portability.
The welding machine has a lightweight, optimally convenient external
feeder for moving between different locations.
The perfect solution for industry and many, continuous welds, for joining
shops and welding departments in factories that weld using coils of
1 to 1.6mm diameter.
Welding machine has full overload protection.
Machine may be operated using a 15KVA generator
SET SPECIFICATION
25mm2 cross section welding cable, 3m length & 300 amp electrode holder.
25mm2 section earth cable, 3m length & Earth connection handle.
External feeder + with cooler.
Mig welding torch 36/4m.
Pressure regulator for CO2 gas + electric heater for preventing freezing
at gas outlet.
Standard power cable and standard approved Israeli type three phase plug.
Input voltage (V) 380±15% 50/60HZ
Required fuse (A) 16×3
Wire speed (m/s) 2.5-13
Current range (A) 50-500
Current at 60% efficiency (A) 500
Work with generator +
Weight with feeder (kg) 42
Open circuit voltage (V)
Dimensions – mm (l/w/h) 16.5-32.5
640×310×639
