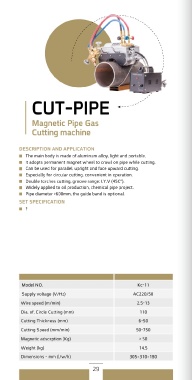

CUT-PIPE

Magnetic Pipe Gas
Cutting machine

DESCRIPTION AND APPLICATION
The main body is made of aluminum alloy, light and portable.
It adopts permanent magnet wheel to crawl on pipe while cutting.
Can be used for parallel, upright and face upward cutting.
Especially for circular cutting, convenient in operation.
Double torches cutting, groove range: I.Y.V (45Cº).
Widely applied to oil production, chemical pipe project.
Pipe diameter >600mm, the guide band is optional.

SET SPECIFICATION
?

Model NO. Kc-11
Supply voltage (V/Hz) AC220/50
Wire speed (m/min)
Dia. of. Circle Cutting (mm) 2.5-13
Cutting Thickness (mm) 110
Cutting Speed (mm/min) 6-50
Magnetic adsorption (Kg)
Weight (kg) 50-750
Dimensions – mm (l/w/h) > 50
14.5

305×310×180
