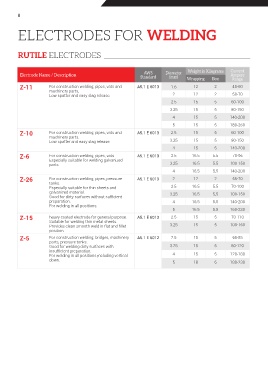

         ELECTRODES FOR WELDING





         RUTILE ELECTRODES




                                                                                                       Ampere
          Electrode Name / Description                           AWS       Diameter   Weight in Kilograms  Current
                                                               Standard     (mm)    Wrapping   Box      Range
          Z-11         For construction welding, pipes, vats and   A5.1 E 6013  1.6    12       2       40-60
                       machinery parts.
                       Low spatter and easy slag release.                     2        12       2       50-70
                                                                             2.5       15       5       60-100

                                                                            3.25       15       5       80-150
                                                                              4        15       5      140-200
                                                                              5        15       5      180-260
          Z-10         For construction welding, pipes, vats and   A5.1 E 6013  2.5    15       5       60-100
                       machinery parts.
                       Low spatter and easy slag release.                   3.25       15       5       80-150
                                                                              4        15       5      140-200
          Z-6          For construction welding, pipes, vats   A5.1 E 6013   2.5      16.5      5.5     70-95
                       Especially suitable for welding galvanized
                       parts.                                               3.25      16.5      5.5    100-150
                                                                              4       16.5      5.5    140-200

          Z-26         For construction welding, pipes, pressure   A5.1 E 6013  2      12       2       55-70
                       tanks.
                       Especially suitable for thin sheets and               2.5      16.5      5.5     70-100
                       galvanized material.                                 3.25      16.5      5.5    100-150
                       Good for dirty surfaces without sufficient
                       preparation.                                           4       16.5      5.5    140-200
                       For welding in all positions.
                                                                              5       16.5      5.5    160-230
          Z-15         heavy coated electrode for general purpose.   A5.1 E 6013  2.5  15       5       70-110
                       Suitable for welding thin metal sheets.
                       Provides clean smooth weld in flat and fillet        3.25       15       5      100-160
                       position.
          Z-5          For construction welding, bridges, machinery   A5.1 E 6012  2.5  15      5       65-85
                       parts, pressure tanks.
                       Good for welding dirty surfaces with                 3.25       15       5       80-120
                       insufficient preparation.
                       For welding in all positions ןncluding vertical        4        15       5      120-180
                       down.                                                  5        18       6      180-230
