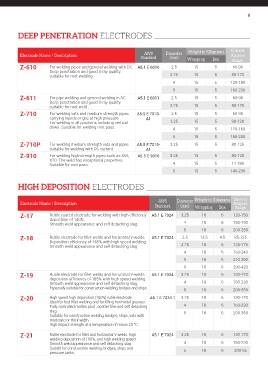

         DEEP PENETRATION ELECTRODES




                                                                                                        Ampere
          Electrode Name / Description                           AWS       Diameter   Weight in Kilograms  Current
                                                               Standard     (mm)    Wrapping   Box      Range
          Z-610        For welding pipes and general welding with DC.  A5.1 E 6010  2.5  15     5       60-90
                       Deep penetration and good X-ray quality.
                       suitable for root welding.                            3.25      15       5       80-125
                                                                              4        15       5      120-180
                                                                              5        15       5      160-230
          Z-611        For pipe welding and general welding in AC.   A5.1 E 6011  2.5  15       5       60-90
                       Deep penetration and good X-ray quality.
                       suitable for root weld .                              3.25      15       5       80-125
          Z-710        For welding vats and medium strength pipes   A5.5 E 7010-  2.5  15       5       60-90
                       carrying liquids or gas at high pressure.   A1
                       For welding in all positions including vertical       3.25      15       5       90-120
                       down. Suitable for welding root pass.                  4        15       5      120-160

                                                                              5        15       5      160-200
          Z-710P       For welding medium strength vats and pipes   A5.5 E 7010-  3.25  15      5       80-125
                       suitable for welding with DC current.      A1
          Z-910        For welding high-strength pipes such as X65,   A5.5 E 9010  3.25  15     5       80-125
                       X70. The weld has exceptional properties.
                       Suitable for root pass.                                4        15       5       11-180
                                                                              5        15       5      140-230


         HIGH DEPOSITION ELECTRODES



                                                                       AWS      Diameter  Weight in Kilograms Current
          Electrode Name / Description                                                                   Ampere
                                                                      Standard   (mm)   Wrapping  Box    Range
          Z-17         Rutile coated electrode for welding with high efficiency   A5.1 E 7024  3.25  18  6  120-150
                       deposition of 140%.
                       Smooth weld appearance and self detaching slag.             4       18      6     150-190
                                                                                   5       18      6     200-250
          Z-18         Rutile electrode for fillet welds and horizontal V-welds.   A5.1 E 7024  2.5  13.5  4.5  85-125
                       Deposition efficiency of 165% with high speed welding.
                       Smooth weld appearance and self detaching slag.           3.25      18      6     130-175
                                                                                   4       18      6     150-240
                                                                                   5       18      6     210-290
                                                                                   6       18      6     290-420
          Z-19         Rutile electrode for fillet welds and horizontal V-welds.   A5.1 E 7024  3.25  18  6  130-170
                       deposition efficiency of 185% with high speed welding.
                       Smooth weld appearance and self detaching slag.             4       18      6     150-230
                       Especially suitable for construction welding, bridges and ships.  5  18     6     200-350

          Z-20         High speed high deposition (160%) rutile electrode.   A5.1 E 7024-1  3.25  18  6  130-170
                       Ideal for fast fillet welding and for filling horizontal grooves.
                       Fully controlled molten pool , spatter free and self detaching   4  18      6     150-230
                       slag.                                                       5       18      6     200-350
                       Suitable for construction welding, bridges, ships, vats with
                       moderate or thick width.
                       High impact strength at a temperature of minus 20 °C.

          Z-21         Rutile electrode for fillet and horizontal V-welds. high   A5.1 E 7024  3.25  18  6  130-170
                       welding deposition of 190%, and high welding speed.
                       Smooth weld appearance and self detaching slag.             4       18      6     150-230
                       Suitabl for construction welding, bridges, ships and        5       18      6     200-35
                       pressure tanks.
